This thin-film amorphous silicon flexible solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect direct sunlight and indirect light in shady areas. A long product lifetime can be achieved when the module is assembled with adequate moisture and UV mitigation.
Electrical Specifications:
Full Sun
-
Power: 770mW
-
Operating Voltage: 15.4V
-
Current: 50mA
1/4 Sun
-
Power: 173mW
-
Operating Voltage: 15.4V
-
Current: 11.3mA
All Levels
-
Average Voc: 19.0V
-
Maximum Voc: 22.2V
-
Isc: 64mA
Physical Specifications:
-
Dimensions: 253.0 x 73.0 (mm) / 9.96 x 2.87 (in)
-
Weight: 0.50oz / 14.17g
-
Thickness: 0.61mm

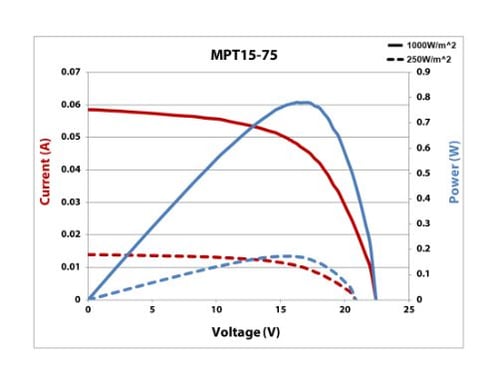

IV Curve
.jpg?width=500&height=385&name=MPT15-75%20IV%20Curve%2025%25%20%26%20Full%20Sun%20(500%20x%20386).jpg)
-
