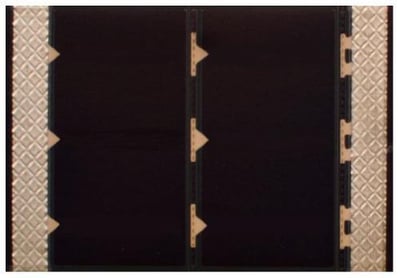

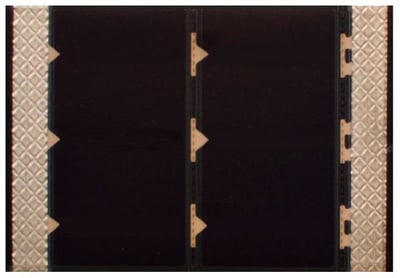

LL200-2.4-37

This thin-film amorphous silicon flexible indoor solar module is laminated with standard duty PET and foil tape contact terminals. It’s well suited to collect artificial lighting in indoor settings such as warehouses, offices, and retail spaces.

Electrical Specifications:

Max Voc all light levels = 3.7V

200 Lux

• Power: 0.068mW

• Operating Voltage: 1.6V

• Current: 0.043mA

• Average Voc: 2.4V

• Isc: 0.06mA

1000 Lux

• Power: 0.449mW

• Operating Voltage: 2.1V

• Current: 0.214mA

• Average Voc: 2.7V

• Isc: 0.2mA

Physical Specifications:

• Dimensions: 54.0 x 36.5 (mm) / 2.13 x 1.44 (in)

• Weight: 0.02oz / 0.55g

• Thickness: 0.22mm

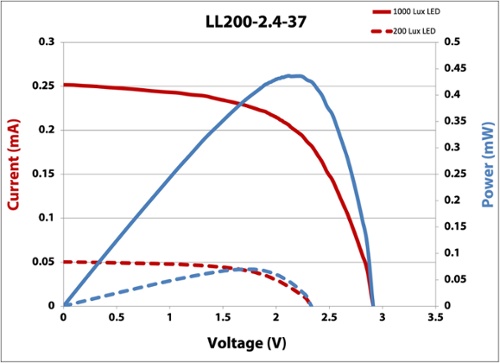

IV Curve

United States

Ships Internationally

Ships Domestically

LL200-2.4-37 Drawing

Electronic Component Solar Panel Handling Instructions
