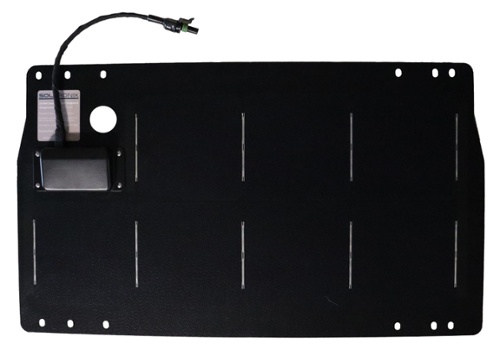

24W Semi-Flexible Solar Panel with Integrated Charge Controller for Thermo King Precedent Trailer Refrigeration Unit (R3-7F13.7VTK)

24W Semi-Flexible Solar Panel with Integrated Charge Controller for Thermo King Precedent Trailer Refrigeration Unit
25ft. O-ring Cable with Fuse

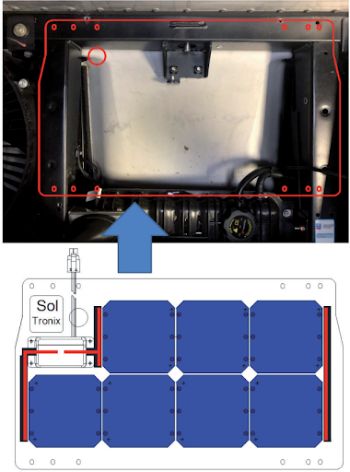

24W Thermoking Christensen Soltronix Solar Panel Installation Graphic

Easily access the radiator cap without removing the solar panel

  • Description
  • Important Notes
  • Specifications
  • Resources

  • TRU solar panels extend battery life, reduce jumpstarts, provide diesel savings for the reefer unit, enable telematics, and maintain your reefer battery voltage during extended off cycles.



    Learn more about the benefits of this panel and solar in general in The Ultimate Guide to Solar Panels for Transportation Refrigeration Units: Boosting Efficiency, Reliability, and Savings



    PowerFilm designed this Soltronix 24W Semi-Flexible Solar Panel specifically for a Thermo King Precedent Trailer Refrigeration Unit. This design includes a unique shape and an integrated fixed power point tracking (FPPT) charge controller.



    Compared to other panels on the market, the integrated charge controller delivers more power to the battery and provides for a quicker installation. The custom shape offers access to the radiator cap without having to remove the panel, reducing maintenance costs.



    The panel attaches easily to the metal frame of the TRU with four self-tapping screws. Older Thermo King units may need rubber feet as spacers between the panel and metal frame to avoid height obstructions. (Screws and spacers are not included).



    What's included:

    • 24W Semi-Flexible Solar Panel with Integrated Charge Controller for Thermo King Precedent Trailer Refrigeration Unit (R3-7F13.7VTK)

    • 15' 18 AWG battery harness with 3A blade fuse, trucking fuse holder, and Coroplast wrap (RT-11)

    Benefits:

    • High-efficiency SunPower/Maxeon cells

    • Integrated Fixed Power Point Tracking (FPPT) charge controller

    • Sustains damage without total power loss

    • Over-charge protection

    • Semi-flexible design

    • Rugged encapsulation

    Power Comparison

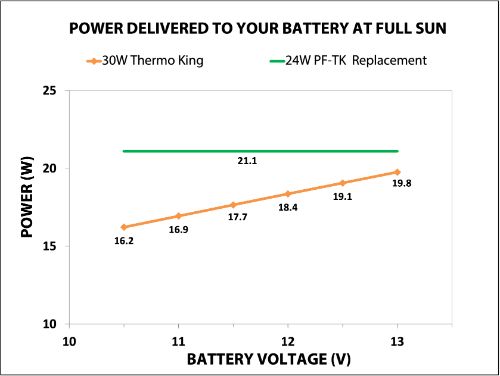

    30W Thermo King vs 24W PF-TK Replacement IV Curve

    The 30W Thermo King panel, due to cut cells prone to edge defects and a lower quality charge controller, provides 18.4W to the battery (61% efficiency).



    The 24W PF - TK Replacement panel provides 21.1W to the battery (88% efficiency).

  • All connections must be solar positive (red) to battery positive and solar negative (black or blue) to battery negative. Reversing can damage the solar panel. Consult your battery manufacturer if you have questions about the specifications of your battery.

  • Your Soltronix solar panel with an integrated charge controller is a DC power source when exposed to light. Typical output would be 10.5V-14.4V and 1.5A-2.0A, depending upon system conditions.

    Power:

    • Panel output to PowerBoost Integrated Charge Controller

      • Nominally 24W

    • PowerBoost Integrated Charge Controller Output to Battery

      • Charges 12V battery (flooded and AGM)

      • Charging voltage 13.8V float, 14.5V max

      • Charging efficiency 88-91%

      • Effective power to battery 21.1W

      • Current 1.5A - 2.0A (depending on battery voltage).

    Charge controller:

    • Protection

      • Reverse polarity

      • ESD capability (AEC-Q101): human body model: class H3B: > 8 kV

      • Reverse leakage

    Physical:

    • Dimensions

      • 22.30 x 12.97 x 0.82 (in) /566.4 x 329.4 x 2.8 (mm)

      • Black fiberglass backing

    • Weight

      • 1.93lb / 0.87kg

    Environmental:

      • Temperature Coefficient

        • Voltage: -1.8mV/C

        • Power: -0.32%/C

      • Storage temperature: -40°C to 85°C

      • Operating temperature: -40°C to 85°C

  • Instructions

    Spec Sheet
