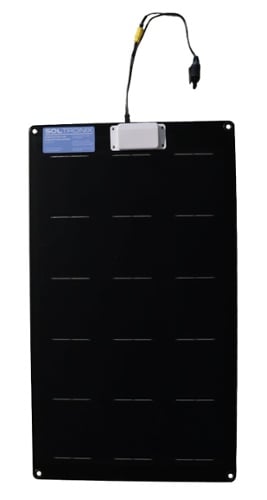

50W Semi-Flexible Solar Panel with Integrated Charge Controller (R3-15F13.7V)

The 50W Solar Panel with Integrated Charge Controller brings together PowerFilm’s 30 years in the solar industry with custom solutions using high-efficiency SunPower monocrystalline (c-Si) solar cells.

The PowerBoost series of charge controllers utilize high-efficiency DC-DC converters and a proprietary power point tracking system to optimize the power collected from the solar panel and efficiently charge a battery.

The PowerBoost will provide the most power to a battery and extend the battery’s lifetime. This charge controller is designed specifically for use with solar and will not overcharge a battery like with 3 stage chargers connected to solar modules.

Leveraging our deep expertise in custom encapsulations, varied substrates, and total electronics, the Soltronix 50 Watt Solar Panel provides unsurpassed efficiency delivering more power to your system.

If the panel is wet, wipe it down before storing it in a cool, dry environment.

All connections must be solar positive (red) to battery positive and solar negative (black or blue) to battery negative. Reversing can damage the solar panel. Consult your battery manufacturer if you have questions about the specifications of your battery.

Operating Voltage and Current are typical values when tested under load at AM 1.5 lighting conditions. Power performance may vary due to temperature, light spectrum, angle to the sun, and other effects (minimum 95% rated when new).

Power:

• Panel output to PowerBoost Integrated Charge Controller

  • Nominally 45W

• PowerBoost Integrated Charge Controller Output to Battery

  • Charges 12V battery (flooded and AGM)

  • Charging voltage 13.8V float, 14.5V max

  • Charging efficiency 88-91%

  • Effective power to battery 40W

  • Current to the battery 2.8A - 3.8A (depending on battery voltage).

Charge controller:

• Protection

  • Reverse polarity

  • ESD capability (AEC-Q101): human body model: class H3B: > 8 kV

  • Reverse leakage

Physical:

• Dimensions

  • 29.6 x 17.0 x 0.1 (in) / 751.8 x 431.8 x 2.5 (mm)

  • Black fiberglass backing

• Weight

  • 3.0lb / 1.4kg

Environmental:

• Temperature Coefficient

  • Voltage: -0.236%/ºC

  • Power: -0.27%/ºC

  • Current: 0.058%/ºC

• Storage temperature: -40°C to 85°C

• Operating temperature: -40°C to 85°C

1. 1. Set the panel on the ground (or another surface) with the solar side facing up and pointing towards the sun.

   2. Use the grommets on each corner and a tie cord to hold the panel in place and reduce loss or damage from high winds.

   3. Connect the appropriate accessory and cable for the type of device you will be charging.

   Electronics:

   1. Connect the 12V Female Car Charger Adapter (RA-2) (not included) to the panel.

   2. Use your own USB car charger adapter to connect your device to the RA-2, or use a 2.4A Dual USB 12V Adapter (RA-14B) (not included) to charge USB electronics.

   Selecting a battery:

   • Soltronix Solar Panels are compatible with all 12V flooded lead-acid and AGM batteries (10Ah or larger are recommended) and many LiFePO and Li-ion batteries (consult battery manufacturer to confirm solar compatibility).

• 15 ft. Extension Cord with Alligator Clips (RA-8) for quick temporary connections to batteries.

• 2.4A Dual USB 12V Adapter (RA-14B) use with the 12V Female Car Charger Adapter (RA-2) to charge USB devices

• Male 12V Car Charger Adapter (RA-1) charge your vehicle’s battery through the 12V power port. Consult your vehicle’s owner’s manual for more information.

• 15 ft. Extension Cord (RA-7)

• Daisy Chain Cable (RA-6-HD) connect a second panel (must be the same voltage) in parallel generating up to 20A.

• Adventure Accessory Kit (AK-2) includes:

  • Daisy Chain Cable (RA-6-HD)

  • 15 ft. Extension Cord with Alligator Clips (RA-8)

  • 12V Male Car Charger Adapter (RA-1)
