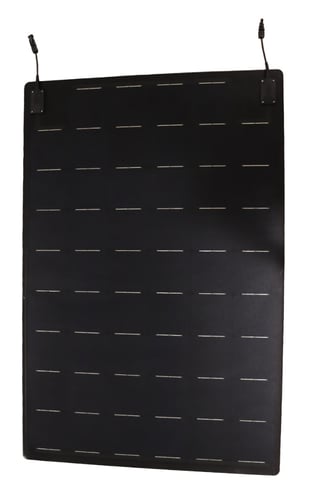

180W SemiFlex Solar Panel with Integrated Edge Seal (R3-46F27.1VXBA)

180W SemiFlex Solar Panel with Built-In Charge Controller and Integrated Edge Seal

Applications:

  • Full rooftop solar installations for trailers and straight trucks supporting all-electric 24V or 48V TRU systems.

Specifications:

  • Voltage: 30.7V
  • Current: 5.8A
  • Open Circuit Voltage: 36.9V
  • Short Circuit Current: 6.3A
  • Description
  • Important Notes
  • Specifications
  • Resources

  • Keep your fleet running smoothly with a complete set of 180W SemiFlex Solar Panels designed for commercial transportation. This maintenance-free solution reliably charges all-electric TRU systems, helping fleet managers reduce diesel consumption and emissions and lower operating costs.



    Paired with a commercial maximum power point tracking (MPPT) charge controller, the panels maximize solar output to battery systems—extending battery life, preventing overcharging, and reducing maintenance costs.



    The Place & Pull double-release liner enables quick, damage-free installation by minimizing panel flex, a common issue with other semi-flexible designs. This protects the high-efficiency Maxeon monocrystalline cells, ensuring exceptional power output and long-term durability.



    With an integrated edge seal, the panel eliminates external edge taping, reducing installation time while ensuring a clean, professional finish that withstands harsh conditions.



    The 180W SemiFlex Solar Panel helps fleets reduce diesel consumption and emissions and cuts operating costs—improving reliability, efficiency, and overall performance.



    Kit Options:

    • 180W SemiFlex Solar Panel with Integrated Edge Seal (R3-46F27.1VXBA)
    • Custom cabling depending on configuration



    Benefits:

    • Easy installation with integrated edge seal and Place & Pull double-release liner
    • Pairs with MPPT charge controller for optimized charging and battery safety
    • Rugged, self-cleaning surface
    • High-efficiency Maxeon cells for maximum power output
    • Designed, engineered and assembled in the USA
    • Tested to meet or exceed performance standards

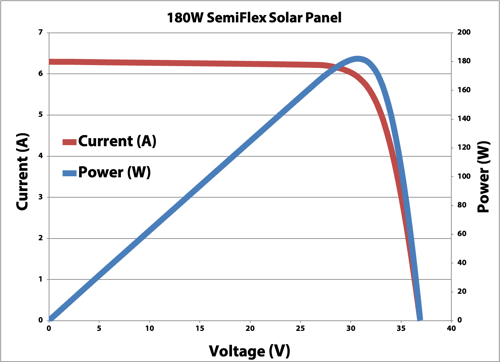

    IV Curve

    180W SemiFlex Solar Panel IV Curve

  • All connections must be solar positive (red) to battery positive and solar negative (black or blue) to battery negative. Reversing can damage the solar panel. Consult your battery manufacturer if you have questions about the specifications of your battery.

  • Power:

    • Voltage: 30.7V
    • Current: 5.8A
    • Open Circuit Voltage: 36.9V
    • Short Circuit Current: 6.3A

    Physical:

    • Dimensions

      • 48.1 x 31.9 x 0.1 (in) / 1,221.7 x 810.3 x 2.5 (mm)

    • Weight

      • ∼8.5lb / ∼3.8kg

    Environmental:

    • Temperature Coefficient

      • Power: -0.27%/ºC

      • Voltage: -0.236%/ºC

      • Current: 0.058%/ºC

    • Storage temperature: -40°C to 85°C

    • Operating temperature: -40°C to 85°C
