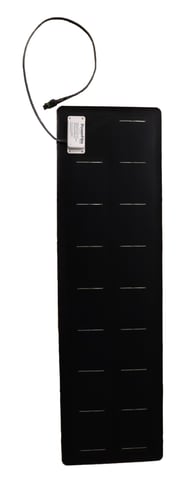

50W SemiFlex Solar Panel with Built-In Charge Controller and Integrated Edge Seal (R3-15F14.4VXBA)

50W SemiFlex Solar Panel with Built-In Charge Controller and Integrated Edge Seal

Applications:

  • Starting battery management for two battery vehicles, TRU battery management, and telematics.

Specifications:

  • Panel output to PowerBoost Built-In Charge Controller

    • Nominally 50W

  • PowerBoost Built-In Charge Controller Output to Battery

    • Charges 12V battery (Flooded, AGM or LiFePO)

    • Charging voltage 14.4V float, 14.6V max

    • Charging efficiency 88-91%

    • Effective power to battery 44.3W

    • Current to the battery 2.8A - 3.8A (depending on battery voltage).

  • Description
  • Important Notes
  • Specifications
  • Resources

  • Keep your fleet running smoothly with the 50W SemiFlex Solar Panel, designed for commercial transportation. This maintenance-free solution charges starting batteries for two battery vehicles, supports TRU batteries, and powers telematics, helping fleet managers prevent starting battery failures, reduce downtime, and lower operating costs.



    The Integrated PowerBoost Charge Controller maximizes solar output for 12V battery systems—extending battery life, preventing overcharging, and reducing maintenance expenses.


    The Place & Pull double-release liner enables quick, damage-free installation by minimizing panel flex, a common issue with other semi-flexible designs. This protects the high-efficiency Maxeon monocrystalline cells, ensuring exceptional power output and long-term durability.



    With an integrated edge seal, the panel eliminates external edge taping, reducing installation time while ensuring a clean, professional finish that withstands harsh conditions.



    The 50W SemiFlex Solar Panel helps fleets stay on schedule by reducing jumpstarts, extending battery life, and cutting maintenance costs—improving reliability, efficiency, and overall performance.



    Kit Options:

    12ft. Wiring Harness Kit (CTK-G-50-12):

    • 50W SemiFlex Solar Panel with Built-In Charge Controller and Integrated Edge Seal
    • 12ft. Wiring Harness

    25ft. Wiring Harness Kit (CTK-G-50-25):

    • 50W SemiFlex Solar Panel with Built-In Charge Controller and Integrated Edge Seal
    • 25ft. Wiring Harness



    Benefits:

    • Easy installation with integrated edge seal and Place & Pull double-release liner
    • Built-in PowerBoost Charge Controller for optimized charging and battery safety
    • Rugged, self-cleaning surface
    • High-efficiency Maxeon cells for maximum power output
    • Designed, engineered and assembled in the USA
    • Tested to meet or exceed performance standards

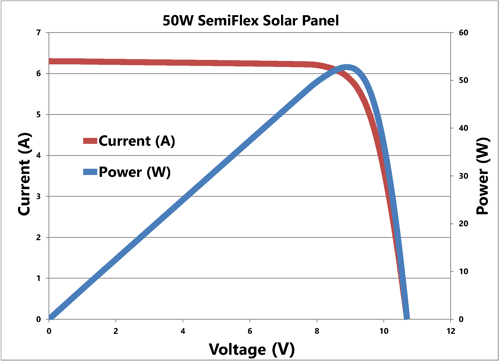

    IV Curve

    50W SemiFlex Solar Panel IV Curve

  • All connections must be solar positive (red) to battery positive and solar negative (black or blue) to battery negative. Reversing can damage the solar panel. Consult your battery manufacturer if you have questions about the specifications of your battery.

  • Power:

    • Panel output to PowerBoost Built-In Charge Controller

      • Nominally 50W

    • PowerBoost Built-In Charge Controller Output to Battery

      • Charges 12V battery (Flooded, AGM or LiFePO)

      • Charging voltage 13.8V float, 14.5V max

      • Charging efficiency 88-91%

      • Effective power to battery 44.3W

      • Current to the battery 2.8A - 3.8A (depending on battery voltage).

    Charge controller:

    • Protection

      • Reverse polarity

      • ESD capability (AEC-Q101): human body model: class H3B: > 8 kV

      • Reverse leakage

    Physical:

    • Dimensions

      • 43.7 x 12.6 x 0.1 (in) / 1,110.0 x 320.0 x 2.5 (mm)

    • Weight

      • 2.9lb / 1.3kg

    Environmental:

    • Temperature Coefficient

      • Power: -0.27%/ºC

      • Voltage: -0.236%/ºC

      • Current: 0.058%/ºC

    • Storage temperature: -40°C to 85°C

    • Operating temperature: -40°C to 85°C

  • Instructions

    Spec Sheet

    Installation Video
