220W Foldable Solar Panel (30V) (F32-7200)
/220W%20Foldable%20Solar%20Panel%20in%20carrying%20case%20(300%20x%20183).jpg?width=300&height=183&name=220W%20Foldable%20Solar%20Panel%20in%20carrying%20case%20(300%20x%20183).jpg "220W Foldable Solar Panel in carrying case")

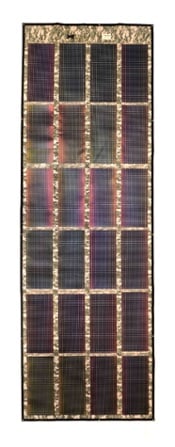

/220W%20Foldable%20Solar%20Panel%20deployed%20(175%20x%20447).jpg "220W Foldable Solar Panel deployed")
Specifications
-
Wattage: 220W
-
Operating Voltage: 30.8V
-
Current: 7.2A
-
Dimensions
- Folded: 31.5 x 17.7 x 2.5 (in) / 800.1 x 449.6 x 63.5 (mm)
- Unfolded: 172.0 x 57.7 (in) / 4,368.8 x 1,465.6 (mm)
- Folded: 31.5 x 17.7 x 2.5 (in) / 800.1 x 449.6 x 63.5 (mm)
- Weight
-
14.0lb / 6.4kg (panel)
-
Weight : 0.7lb / 0.3kg (carrying bag)
-
Weight: 0.4lb / 0.2kg (cabling)
-
- Description
- Important Notes
- How To Charge
- Where To Buy
- Resources
Click the Where To Buy tab to see which distributors stock this product.
Are you interested in purchasing a large quantity? Contact us directly.
The 220W Foldable Solar Panel is designed to charge small to medium electronic devices using DC power or one of many available accessories.
What's included:
- 220W Foldable Solar Panel (F32-7200)
- Aptiv (formerly Delphi) to bare wire cable
- Carrying Bag
Best uses:
- 24V battery charging
Benefits:
-
Easy to Use - Unfold the panel and start charging in seconds.
-
Durable - marine grade connectors, weather-resistant fabric, military tested.
-
Low Light Operation - provides some power even in hazy or shaded environments.
-
Lightweight - No frames, no special stands or mounting brackets needed.
-
Portable - Folds into a package that's easy to take with you.
Foldable Solar Panels are designed for regular outdoor use but not permanent outdoor installations. While light rain will not damage the panels if they are brought inside and dried before storing, the panels are not weatherproof and should not be deployed in poor conditions. The fabric may discolor and fray with permanent outdoor exposure, and the individual solar modules may also be compromised.
Always store the Foldable Solar Panel in a cool, dry environment. If the panel is wet, allow it to thoroughly dry before folding and storing it to avoid damage (temperature range -30 to 60° C).
All connections must be solar positive (red) to battery positive and solar negative (black or blue) to battery negative. Reversing can damage the solar panel. Consult your battery manufacturer if you have questions about the specifications of your battery.
A charge controller is not required if the battery capacity is 100x greater (or more) than the panel output. For example, a 100Ah battery would not need a charge controller if the panel output is 1A or less. If a charge controller is required, please size it appropriately to the panel output.
Operating Voltage and Current are typical values when tested under load at AM 1.5 lighting conditions. Power performance may vary due to temperature, light spectrum, angle to the sun, and other effects (minimum 95% rated when new).
Part Numbers
Product part numbers on paperwork and invoices will include additional information not seen on the Foldable Solar Panel's physical label. Below are the codes added that designate color.
Black - (BLK)
Khaki - (KHA)
Woodland - (WL)
Digicam - (ACU)
3 Color Desert Camo - (3CD)
LiteLok Coyote Brown - (CB)
LiteLok Multicam (LTMC)
- Unfold the panel with the solar side facing up and pointing towards the sun.
- Use the grommets on each corner and a tie cord to hold the panel in place and reduce loss or damage from high winds.
- Connect the appropriate accessory and cable for the type of device you will be charging.
