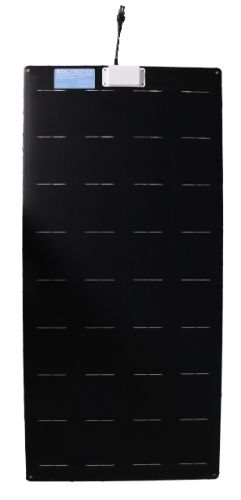

110W Semi-Flexible Solar Panel with Integrated Charge Controller and Butyl Adhesive (R3-32F13.7VB)

Solar panels extend battery life, reduce jumpstarts, provide diesel savings, enable telematics and maintain battery voltage during extended off cycles.

PowerFilm designed this Soltronix 110W Semi-Flexible Solar Panel with Integrated Charge Controller to simplify solar charging. The 110W solar panel includes semi-flexible fiberglass backing, full backside butyl adhesive, and an integrated fixed power point (FPPT) charge controller.

Compared to other panels on the market, the FPPT integrated charge controller delivers more power to the battery and provides faster installation. Industrial-strength butyl adhesive across the entire backside of the panel ensures a tight bond to the vehicle or trailer and eliminates bond failures due to water freeze-thaw cycles.

What's included:

• 110W Semi-Flexible Solar Panel with Integrated Charge Controller and Butyl Adhesive (R3-32F13.7VB)

Cable Options:

• 25ft. Coroplast Wrapped Extension Cable with O-ring Connectors (CA1225WPRTCF)
• Custom cable lengths, connections, and wire wrap are available depending on requirements (cable not included).

Benefits:

• High-efficiency SunPower/Maxeon cells require less area on fairings and limit power reduction due to hail damage/strikes
• Integrated FPPT charge controller results in faster installation and more power than traditional PWM charge controllers
• Full backside Industrial strength butyl adhesive provides the best bond to truck or trailer
• Semi-flexible design enables easy attachment to fairings or hoods
• Rugged, self-cleaning encapsulation

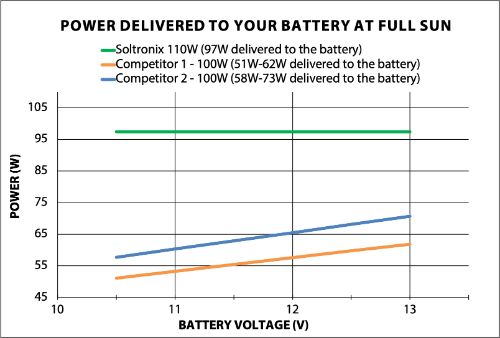

Power Comparison

Comparison Graph Notes

• Panel manufacturer and advertised panel output.
• Plot points are calculated outputs from the IV curve.
• MPPT / FPPT controllers aren’t commonly found with panels under 100W.
• The largest drop in power to the battery occurs when the panel voltage is higher than the battery requirement. Traditional PWM charge controllers discard power above the current battery level.

All connections must be solar positive (red) to battery positive and solar negative (black or blue) to battery negative. Reversing can damage the solar panel. Consult your battery manufacturer if you have questions about the specifications of your battery.

Your Soltronix solar panel with an integrated charge controller is a DC power source when exposed to light. Typical output would be 10.5V-14.4V and current to the battery 6.0A - 8.5A (depending on battery voltage).

Power:

• Panel output to PowerBoost Integrated Charge Controller

  • Nominally 110W

• PowerBoost Integrated Charge Controller Output to Battery

  • Charges 12V battery (flooded and AGM)

  • Charging voltage 13.8V float, 14.5V max

  • Charging efficiency 88-91%

  • Effective power to battery 97W

  • Current to the battery 6.0A - 8.5A (depending on battery voltage).

Charge controller:

• Protection

  • Reverse polarity

  • ESD capability (AEC-Q101): human body model: class H3B: > 8 kV

  • Reverse leakage

Physical:

• Dimensions

  • 44.5 x 20.9 x 0.1 (in) / 1,130.3 x 530.9 x 2.5 (mm)

  • Black fiberglass backing

• Weight

  • 6.2lb / 2.8kg

Environmental:

• Temperature Coefficient

  • Voltage: -0.236%/ºC

  • Power: -0.27%/ºC

  • Current: 0.058%/ºC

• Storage temperature: -40°C to 85°C

• Operating temperature: -40°C to 85°C
